Case Study | Application of Non-metallic Mining Detection

Jul 07,2025

Location: Jingmen City, Hubei Province

Method: Natural source surface wave background noise imaging

Time: 2024.1.11-2024.1.12

Weather: Sunny

Parameters: 135 UGL3C, point spacing 50m, line spacing 50m, 400×700 survey area, detection depth of 600m or shallower, one day of collection

Results: consistent with known drilling data, and the spatial position and morphology of the weak layer in the broken zone are more intuitively depicted with a three-dimensional structure

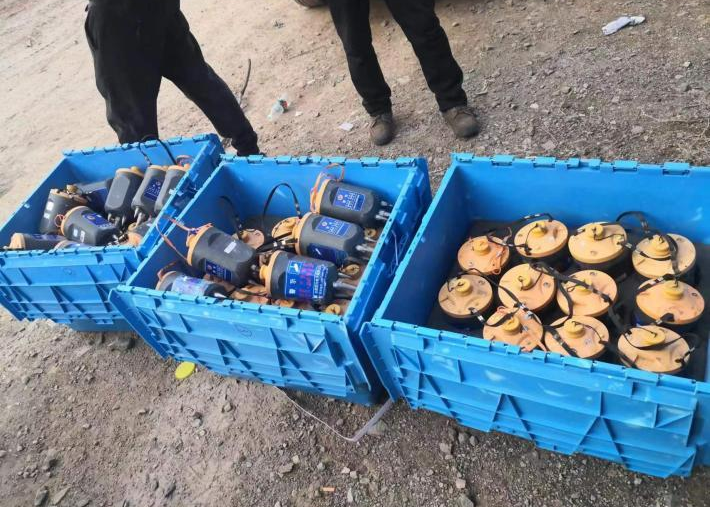

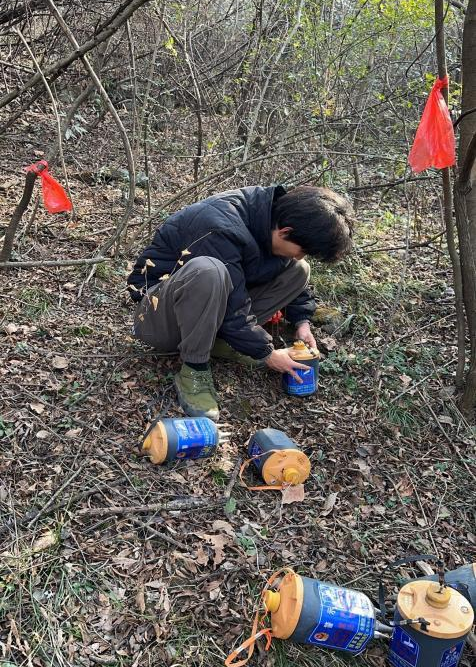

Field Picture:

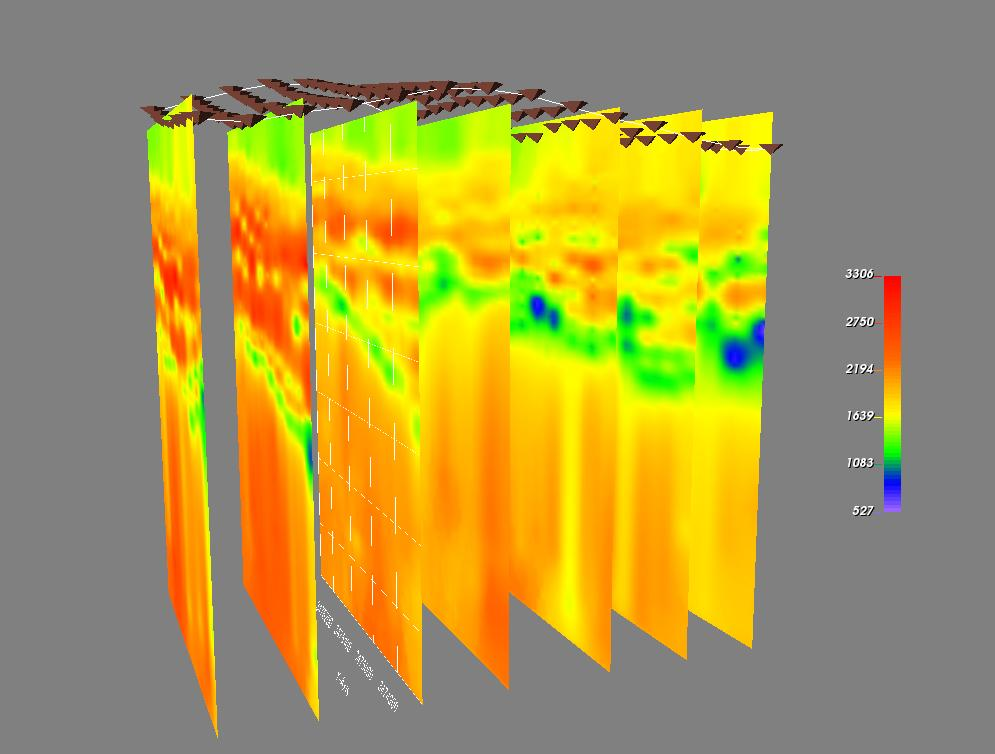

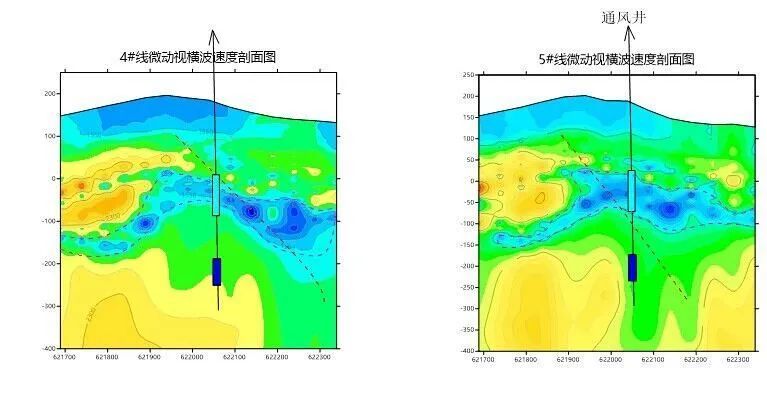

Data Processing Results:
