Case Study | Structural Detection in Microseismic Areas (Part 2)
Jun 19,2025
Micro-seismic exploration operations
Operation overview and parameter design
Cooperating unit: Shanxi Third Geological Engineering Survey Institute Co., Ltd.
Operation location: Datong, Shanxi
Operation task: micro-seismic exploration
Operation time: 2022.07.02-2022.07.05
Weather conditions: sunny

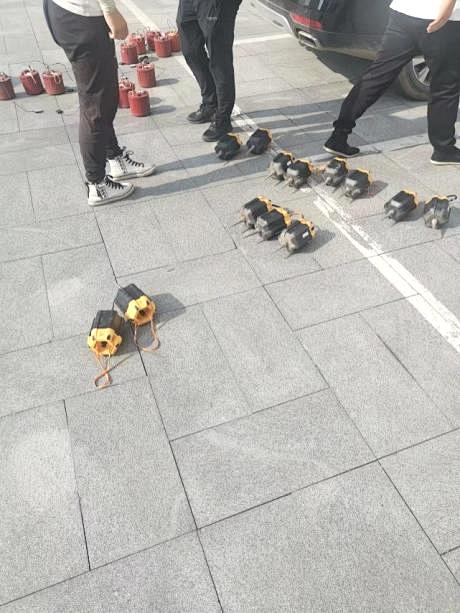

Operation equipment: Guowei GN309
Operation parameters: four-fold circular table array, radius 200m-400m-600m-800m, acquisition 120 minutes, sampling rate 4ms, gain 0dB

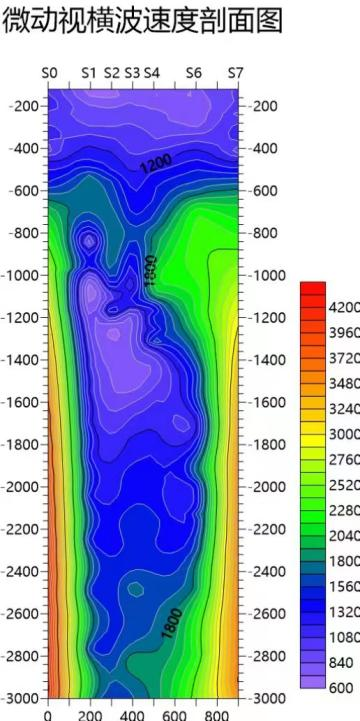

Operation results: The detection area is located in the Datong Basin. The designed borehole is located at the S3 measurement point in the figure, located at the bottom of the basin. The detection results show high-speed structures on both sides and low-speed structures in the middle, which are consistent with the known stratigraphic structure in the area.

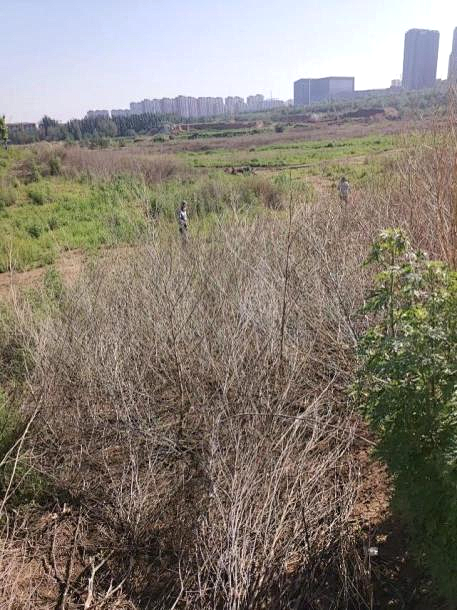

Work site
Job overview and parameter design
